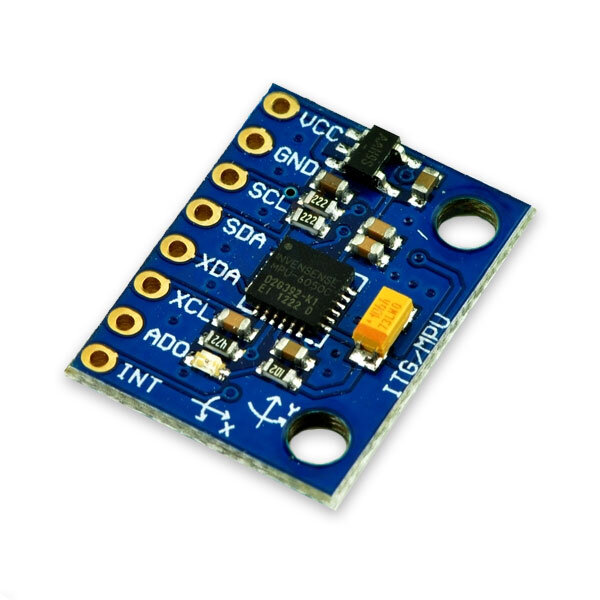

Triple Axis Accelerometer and Gyro Breakout - MPU6050

The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processorª (DMPª) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

6,00 €
inkl. 20% USt. , zzgl. Versand
Nicht auf Lager
Beschreibung

The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processorª (DMPª) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

Our breakout board for the MPU-6050 makes this tiny QFN package easy to work into your project. Every pin you need to get up and running is broken out to 0.1" headers, including the auxiliary master I2C bus which allows the MPU-6050 to access external magnetometers and other sensors.

Features

  • I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
  • Input Voltage: 2.3 - 3.4V
  • Selectable Solder Jumpers on CLK, FSYNC and AD0
  • Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
  • Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
  • Digital Motion Processingª (DMPª) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
  • Embedded algorithms for run-time bias and compass calibration. No user intervention required
  • Digital-output temperature sensor

Documents

Bewertungen (1)

4/5
(1)

5 Sterne
3 Sterne
2 Sterne
1 Stern

Teilen Sie anderen Kunden Ihre Erfahrungen mit!

Good IMU but no documentation for DMP
4 von 5

This IMU has very low noise and has a built in DMP. (reduces the amount of calculation needed for the uC).

The problem is, that there is no documentation available for configuring the DMP.
If the arduino library is used, the DMP works well.

Would buy again

Peter F., 01.09.2015
