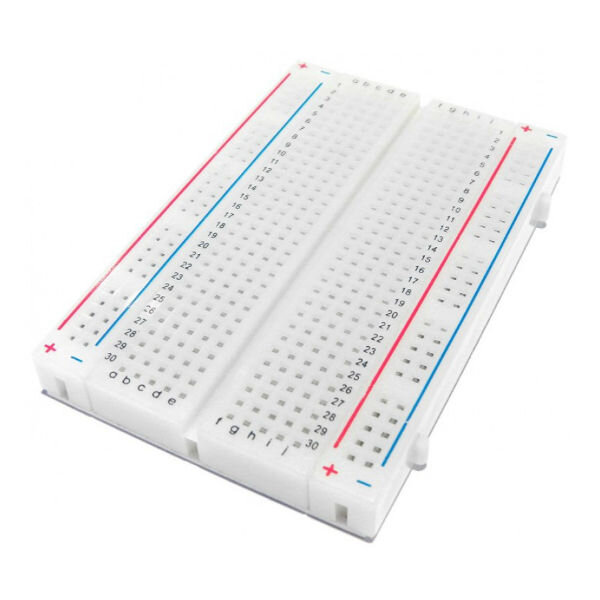

This is a cute half size breadboard which has 400 tie-points, is great for small projects. it's 2.2" x 3.4" (5.5cm x 8.2cm) with a standard double-strip (300pts) in the middle and two power rails (100pts) on both sides. You can pull the power rails off easily to make the breadboard as thin as 1.4" (3.5cm) and stick it onto your Raspberry Pi. You can also cut these in half with a saw to create 2 tiny breadboards, or "snap" these breadboards together either way to make longer and/or wider breadboards.
Dimensions:
- 2.2" x 3.4" (5.5cm x 8.2cm)
- 8.5mm(0.38in) thick, including sticky foam on the bottom
- Weight: 38.9g(1.27oz)
- Colour - White
- 400 tie-points. 300 on a Standard Double Strip amp; 100 Across 2 Power Lanes
- ABS Housing
- Nickle Phosphor Bronze Contact Clips
- Accepts Wire Diameter - 20 to 29 AWG
- Voltage: 300V
- Current: 3A to 5A
