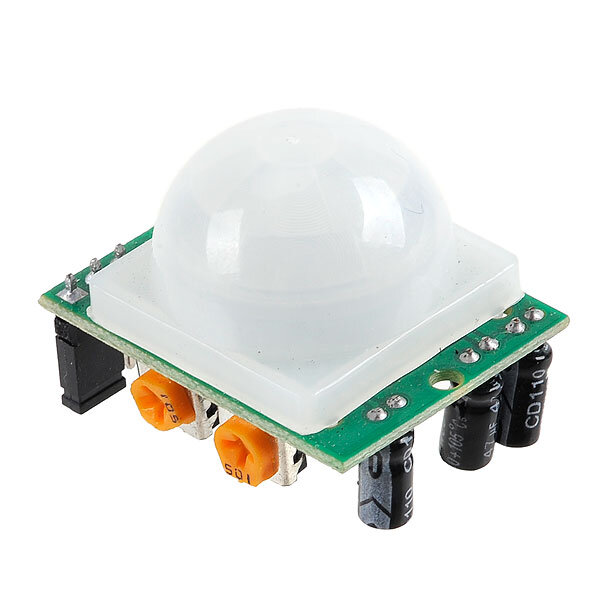

PIR Motion Sensor Module is base on BISS0001(datasheet),it can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices, is a high-tech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive.
Features
- Input Voltage: DC 4.5-20V
- Static current: 50uA
- Trigger:H-Yes, L-No
- Block time: 2.5 S(default)
- Delay time: 5 S(default)
- Sentry Angle lt; 110 degree
- Sentry Distance: 3m(default) - max 7 m
- Lens Size:Diameter: 23mm(Default)
- Dimensions: 32mm * 24mm
