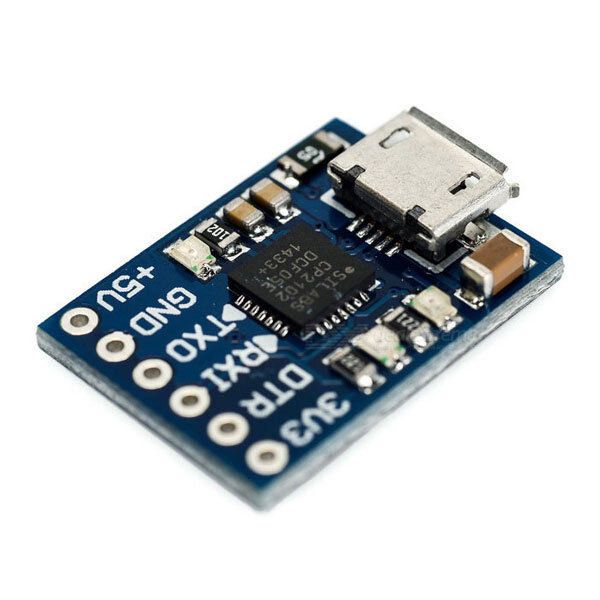

This small Breakout Board with CP2102 is a TTL UART 6PIN Module Serial Converter. The connetion is over a Micro USB Cable.
Single-Chip USB to UART Data Transfer:
- Integrated USB transceiver, no external resistors required
- Integrated clock; no external crystal required
- Integrated 1024-Byte EEPROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- On-chip power-on reset circuit
- On-chip voltage regulator: 3.3 V output
- 100% pin and software compatible with CP2101
USB Function Controller:
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pin
Asynchronous Serial Data BUS (UART):
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbits
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character suppor
- Line break transmission
Size
- 21mm x 15mm
