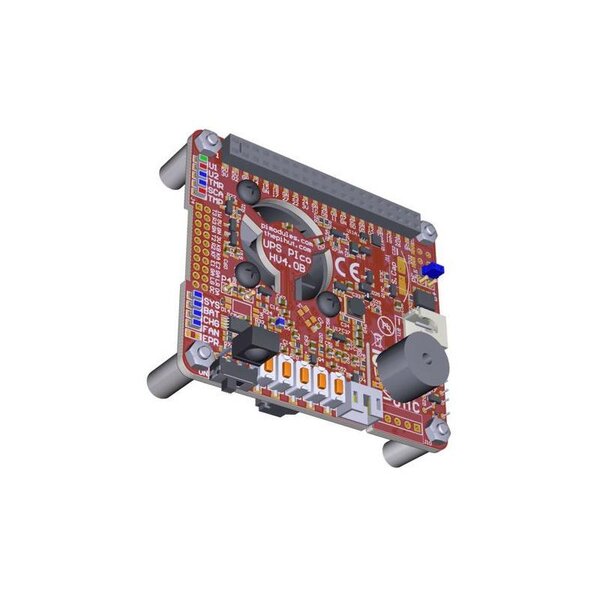

UPS PIco HV4.0B HAT Stack with Battery 450

The UPS PIco HV4.0B/C HAT Stack with Battery 450 is an advanced Intelligent Mobile Power Bank and Uninterruptible Power Supply for the Raspberry Pi® A+/B+/2/3 and ZERO/W, that adds a wealth of innovative power powering/back-up functionality and development features to the innovative microcomputer!

Ordered Item contains:

1. UPS PIco HV4.0B/C Stack with all described below long list of features
2. Selected by user battery (default set to LiPO Battery 450 mAh 15C)
3. Not Soldered2 x Spring Loaded POGO Pins (RUN/PEN)
4. SMD Soldered Battery Socket (2.5mm)
5. SMD Soldered FAN Socket (2mm)
6. 40 pin header (not passed through)
7. Not Soldered2mm compatibility Jumper for Raspberry Pi® 3 Assembly
8. Mounting Spacers, screws, nuts needed to mount on the Raspberry Pi® microcomputer

NOTE:All not soldered THT parts need to be soldered by user, or by our soldering service available as an option during ordering.

Ordered Item does not contain and could be ordered separately if needed for specific application:

Batteries

1. Standard/High Capacity Batteries (1500 mAh, 4000 mAh, 8000 mAh)

Li-Ion 18650 Batteries/18650 Battery Holders HAT

1. PIco Single LP/LF Li-Ion 18650 Battery Holder (without battery)
2. PIco Double Li-Ion 18650 Battery Holder (without battery)
3. Li-Ion 18650 2600 mAh Battery

AA NiMH Batteries/AA NiMH Battery Holders HAT

1. AA NiMH Battery Holder (without battery)
2. AA NiMH 2000 mAh Battery (3 pcs)

Super Capacitors

1. 100F Super Capacitor (mounted on UPS PIco HV4.0B)
2. 300F Super Capacitor Separate HAT
3. 500F Super Capacitor Separate HAT

Through Hole Add-on Parts

1. Infrared Receiver
2. ON/OFF micro Slide Switch
3. 2×10 pins 2mm PIco header
4. 3 pin 2mm RS232 THT socket and header (without cable)
5. 80 dB Sound Electromagnetic Transducer
6. DPDT 2A RELAY

Application Specific Add-on Extensions

1. TCXO – Temperature Compensated Ultra Stable Clock Generator (1.5 ppm) for the embedded RTC (if needed a high stability RTC)
2. 3 pin 2mm RS232 socket/header and 100 mm cable (ended with 9 pins D-Sub)
3. UPS PIco HV4.0 Terminals Blocks Additional PCB (20 I/O are directed to Terminal Block) for easy mounting
4. PiBlock Case with external Slide Switch, and 2 External user buttons, and slot for Terminals Block PCB

Short System Overview

UPS PIco HV4.0B/C Stack is an Ultimate Powering System HAT that adds a wealth of innovative powerful and development features to the Raspberry Pi® microcomputer! It has been designed especially for the Raspberry Pi® 4, and taking into account all enhanced power and cooling requirement of the Raspberry Pi® 4 models, however in addition it is still compatible with all former Raspberry Pi models. The core functionality of the UPS PIco HV4.0B/C Stack is to protect and automatically shut-down your Raspberry Pi if there is a cable power failure and can be set to automatically monitor and reboot your Pi once cable power has been restored! However, it is only a small part of plenty and powerful functionalities that are implement on this small HAT.

The UPS PIco HV4.0B/C Stack is the only one on the market that offers such enhanced set of features at once:

General

• HAT Dimensions Compliant
• Email broadcasting on events (Cable Power loss/return, Wake-up, User Button, A/D etc)
• Plug and Play
• Ultra light System.d Daemon based on threading
• GPIO free (all GPIOs are available for user application) interaction with Raspberry Pi® via I²C
• Enhanced System Monitoring and Programming API
• Labeled J8 Raspberry Pi® GPIO Pins for Easy Plug & Play of experimental cables
• Standard THT 40 Pin connector (not soldered)
• Remote bootloader for Live Firmware Update on remote locations
• Local bootloader for Live Firmware Update

Powering Options

• 2 independent power back-up sources: Battery and Super Capacitor automatically switching between them according to powering condition, used together or separately.
• Enhanced Line Interactive UPS functionality (25us response time)
• Additional File Safe Shutdown and Start-up Functionality on a Single Button
• Continuously [email protected] supply on battery power backup
• Programmable Battery backed-up of independent power sources of 200@5V and 3V3
• Intelligent Mobile Power Bank functionality with save shutdown/start-up, with Internal or External Slide Switch and RTC

Supported Batteries Types, Super Capacitors and Capacities

• Supports a wide range of different Chemistry batteries and Super Capacitors (LiPO/LiFePO4/Li-Ion/NiMH/SAL/Super Capacitor)
• Support for Li-Ion 18650 low cost batteries (from Electronic Cigarettes) with dedicated mounting base PCB HAT screwed on top
• Support for LiPO 18650 batteries with dedicated mounting base PCB HAT screwed on top
• Support for LiFePO4 18650 batteries with dedicated mounting base PCB HAT screwed on top
• Support for Super Capacitor 100F soldered to PCB
• Support for Super Capacitor 300F as a separate PCB HAT screwed on top
• Support for Super Capacitor 500F as a separate PCB HAT screwed on top
• Both Back-up Power Sources (Battery and Super Capacitor) can be used at once (with automatic selection and switching) or one of them, thanks to ultra low voltage High Current Boost Converter

Embedded Peripherals and Interfaces

• 2 User Programmable buttons
• 2 User Programmable LEDs (with mapping capability of the system behavior LEDs)
• System File Safe Shutdown/Start-up button with additional cable connectivity to external button
• 2 x 200 ks/s ESD protected A/D with voltage follower (high impedance)
• ESD Protected 3V3/5V0 1-wire interface
• Infra-Red Receiver Sensor Interface (IR Not Included) directly connected to the GPIO18
• Integrated Hardware Real Time Clock (RTC) with Battery Back-Up
• Optionally TCXO with Ultra Stable RTC (1.5 – 5 ppm @+25°C) – Error Over Time ±0.432sec/day; ±12.960sec/month; ±2.628min/year
• DPDT 2A RELAY on the same PCB
• Programmable Integrated PWM Sounder (programmable by user API or Automatic), able to play music
• Programmable embedded quad +/-12V RS232 interface (2 at once time).
• Programmable Integrated PWM FAN (integrated within the basic order) running based on Raspberry Pi Core temperature

Embedded Sensors

• Single High-side bi-directional hardware current sensing monitor with power calculation
• onboard temperature sensor
• Battery Level Voltage
• Super Capacitor Voltage
• Raspberry Pi GPIO 5V level

User/Programmer Interface

• I²C PIco API Interface for Control and Monitoring, with over 50 programming registers
• Support for 4 different users selectable I2C addresses sets:
  • DEFAULT: 0x68, 0x69, 0x6A, 0x6B, 0x6C, 0x6D, 0x6E, 0x6F
  • NO_RTC: 0x69, 0x6
  • ALTERNATE1: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
  • ALTERNATE2: 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D, 0x4E, 0x4F

RTC Support and System Scheduler

• RTC Scheduler
• Enhanced shutdown and start-up system based on various internal/external events events: Time stamp, A/D level, RS232 data, Cable Powering/Loss (UPS), Battery Level, I/O Level, etc

Case Compatibility

• No Additional External Power Input Required. System is monitoring power status over 5V GPIOs, therefore is compatible with 99% of all existing cases
• Fits Inside Most Existing Cases as no extra cabling is needed

System Monitoring

• Status Monitoring – Powering Mode, Inbound current, Outbound current, Powering Voltage, Battery Voltage, Super Capacitor Voltage, Temperature (Raspberry Pi Core and UPS PIco), Timer State
• Events Pi Log feature
• System LEDs – SYS, BAT, CHG, INF, FAN, SCA, TMR, TMP (optionally selected can be mapped to User LEDs)
• System Healthy, that informs user remotely if Raspberry Pi and UPS Pico HV4.0B are running properly and system is power protected (based on various internal system triggers)

User Applications Security

• (optional) 2-way XTEA Based Encryption Engine for User Intellectual Properties protection

System Protection

• Direct Raspberry Pi® Hardware Reset Button via Spring Loaded Pogo Pin point to RUN
• Direct Raspberry Pi® Hardware ON/OFF via Spring Loaded Pogo Pin point to PE, Even if Powering Cable is entered to Raspberry Pi®
• Programmable Watch-Dog Hardware feature (Still Alive Timer)
• PPTC 3A@5V fuse
• ZVD circuit on all 5V GPIO connections
• Micro-controllerbased watch-dog
• Over Temperature protection
• Over Current protection

System Design

• Designed and Simulated with PDA Analyzer with one of the most advanced CAD/CAM Tools – Altium Designer
• Design Based on Microchip 16-bit 16 MIPS micro controller
• Industrial Originated

PCB Construction

• 2 oz copper PCB manufactured for proper high current supply and cooling
• 6 mils track/6 mils gap technology 6 layers PCB
• PCB Surface Finishing – Immersion Gold
• Multi-layer Copper Thermal Pipes for increased System Thermal Response and better passive cooling

Documents

• 3D PDF File
• FAQ
• Devices Comparison Table
• STEP File
