Beschreibung

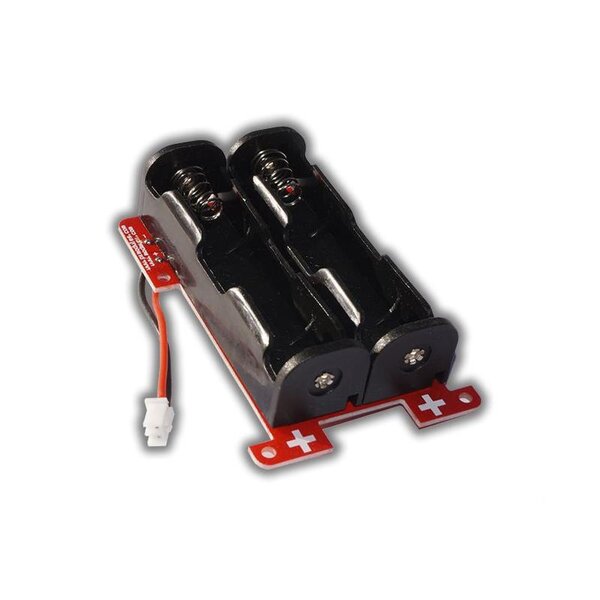

The PIco Double Li-Ion 18650 Battery Holder is a add-on to the UPS PIco HV3.0A/B/B+ 450 HATs Stack/Top-End/Plus/Advanced and UPS PIco HV4.0B/C Stack/Advanced/PPoE that allows to use wide available 18650 Li-Ion batteries. They are low cost due to use in the Electronic Cigarettes and offer a plenty of different capacities. These batteries now can be used with the UPS PIco HV3.0A/B/B+ 450 HATs Stack/Top-End/Plus/Advanced and UPS PIco HV4.0B/C Stack/Advanced/PPoE without any restriction. Each PIco Double Li-Ion 18650 Battery Holder is equipped with inverse battery insertion protection. It can be used with single or double 18650 Li-Ion batteries. It is strongly recommended to use PCB protected batteries due to security reasons. If 2 pcs of 18650 Li-Ion batteries have been used, please notice that the are connected in parallel so capacity of them is added. The maximum capacity available on the market is 3400 mAh x 2 = 7200 mAh. It is not allowed to use other types of batteries than Li-Ion, as on these chemistry batteries can be connected in parallel by user.
This product is NOT COMPATIBLE with Terminals Block PCB.
