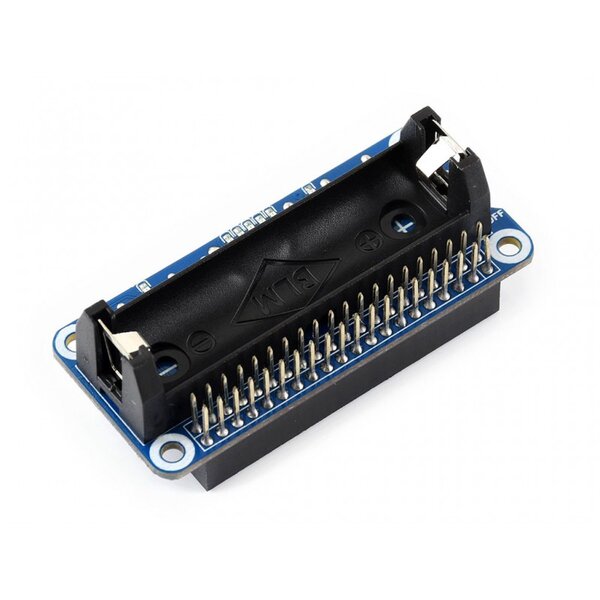

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.
Features
- Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
- Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
- Onboard indicators: quick charge, warning, and power capacity
Specifications
- Output voltage: 5V
- Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
- Dimension: 65mm × 30mm
- Mounting hole size: 3.0mm
What's on Board
- Raspberry Pi GPIO connector: for connecting Raspberry Pi
- SW6106 power management chip
- USB Type-C connector: battery charge/power output
- USB Type-A connector: power output
- Micro USB connector: battery charge
- Raspberry Pi power switch
- Battery warning indicator: on when the battery is reverse
- Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
- Quick charge indicator: on when quick charging
- 14500 battery holder
