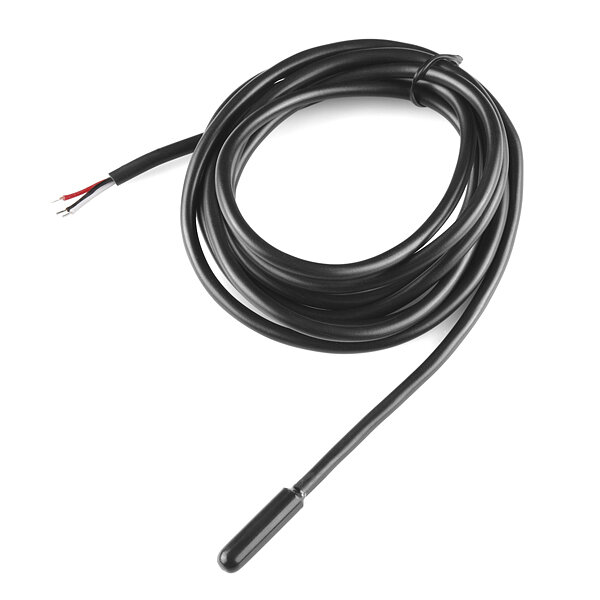

This sealed Digital Temperature Sensor DS18B20 4 meter probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.
Dimensions:
Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 4 meter.
Features
- 3.0-5.5V input voltage
- Waterproof
- -55¡C to+125¡C temperature range
- ±0.5¡C accuracy from -10¡C to +85¡C
- 1 Wire interface
Documents
- Datasheet (DS18B20)
- mbed Example
- Bildr Tutorial
