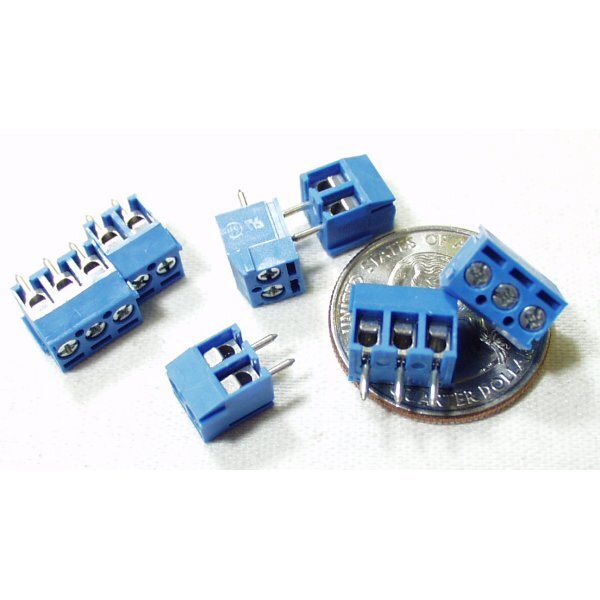

Screw Terminals with 3.5mm pitch with 3 pins. Comes in 2 or 3 positions and have
the really cool feature of slide-locking together to form any size you need (4,
5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to
20AWG wire. 3.5mm/138mil pin pitch will not fit'standard 0.1" perf boards but
this is the most common pitch screw terminal.
This adapter allows you to connect a barrel jack connector to bare wires. One end has screw terminals and the other has a 5.5x2.1mm, center-positive male barrel jack. If you need to connect bare wires to a barrel jack on an Arduino or a development board, this might be the simple solution.
PIR Motion Sensor Module is base on BISS0001(datasheet),it can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices, is a high-tech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family...
The UNO WiFi board is the Arduino UNO with integrated WiFi. For beginner and advanced users alike. The Arduino UNO WiFi board is based on the ATmega328 and it has an integrated ESP8266 WiFi Module. If you are starting out with Arduino, or starting with IoT, this is the board to get.
This is high-precision BMP180 low-power digital barometer breakout board. The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. it\'s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration...
Screw Terminals with 3.5mm pitch 2 pins. Comes in 2 or 3 positions and havethe really cool feature of slide-locking together to form any size you need (4,5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to20AWG wire. 3.5mm/138mil pin pitch will not fit\'standard 0.1" perf boards butthis is the most common pitch...
