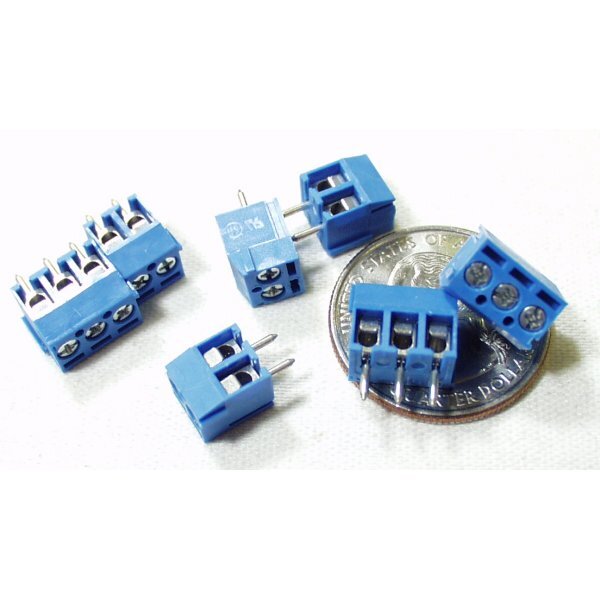

Screw Terminals with 3.5mm pitch 2 pins. Comes in 2 or 3 positions and have
the really cool feature of slide-locking together to form any size you need (4,
5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to
20AWG wire. 3.5mm/138mil pin pitch will not fit'standard 0.1" perf boards but
this is the most common pitch screw terminal.
Single row of 30-holes, female header with swiss round machined pins. These units have very high quality round pins to accept and retain machine pin headers much better. Can be cut to size with a pair of wire-cutters. Standard .1" spacing. We use them extensively in the Olimex development boards. They mate very well with break away headers.
Screw Terminals with 3.5mm pitch with 3 pins. Comes in 2 or 3 positions and havethe really cool feature of slide-locking together to form any size you need (4,5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to20AWG wire. 3.5mm/138mil pin pitch will not fit\'standard 0.1" perf boards butthis is the most common pitch...
Single row of 40-holes, female header. Can be cut to size with a pair of wire-cutters. Standard .1" spacing. We use them extensively in the Olimex development boards. They mate very well with break away male headers.
A Feather board without ambition is a Feather board without FeatherWings! This is the DC Motor + Stepper FeatherWing which will let you use 2 x bi-polar stepper motors or 4 x brushed DC motorx (or 1 stepper and 2 DC motors). Using our Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top or bottom of your Feather board...
This adapter allows you to connect a barrel jack connector to bare wires. One end has screw terminals and the other has a 5.5x2.1mm, center-positive male barrel jack. If you need to connect bare wires to a barrel jack on an Arduino or a development board, this might be the simple solution.
What is better than smart RGB LEDs? Smart RGB+White LEDs! These NeoPixels with 60 LED/m now have 4 LEDs in them (red, green, blue and white) for excellent lighting effects. These LED strips are fun and glowy, and you can control each LED individually!
This is high-precision BMP180 low-power digital barometer breakout board. The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. it\'s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration...
