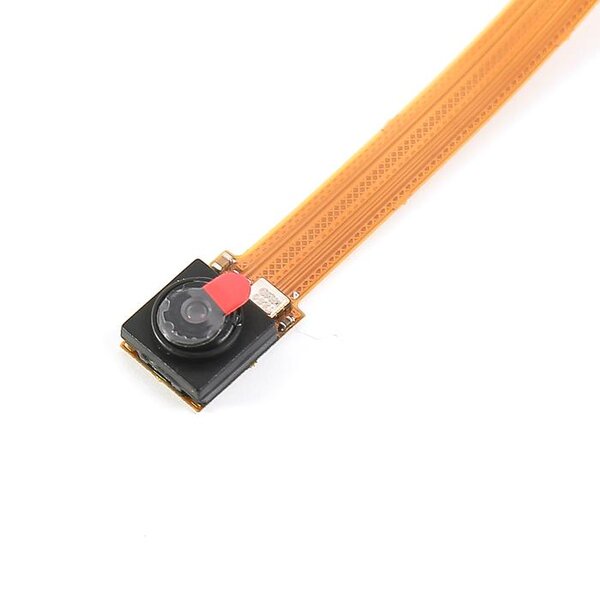

The Raspberry Pi Zero W 5MP OV5647 70° FOV Camera is 15cm length and is a tiny camera which is compatible to Raspberry Pi 2, Raspberry Pi 3 and Raspberry Pi 4. The OV5647 has a 5 MegaPixel Sensor. You can plug it directly onto the CSI camera port (not in idle!) and use it. Do not forget to enable to camera at raspi-config.
Using the Camera Cable Adapter you can plug it to a Zero W and Zero WH.
Specifications
- Sensor: OV5647, 5MP 2592x1944 pixels
- Pins: 22
- Pitch: 0,5mm
- AVDD: 2.7-3.3V (Typical2.8V)
- DVDD: 1.45-1.8V
- DOVDD: 1.7-3.3V
- Lens Structure: 4P (650nm)
- EFL: 3.52
- FNO: 2.8
- FOV: 70 degree
- Output Format: YUV or RAW RGB 1080p video at 30 FPS (or 60 FPS at 720p, 90 FPS at 480p) F2.9 lens, 3.4 mm focal length
- Approx. dimensions of circuit and camera: 60 x 11.5 x 4.5mm
- Cable length: 28,9mm
