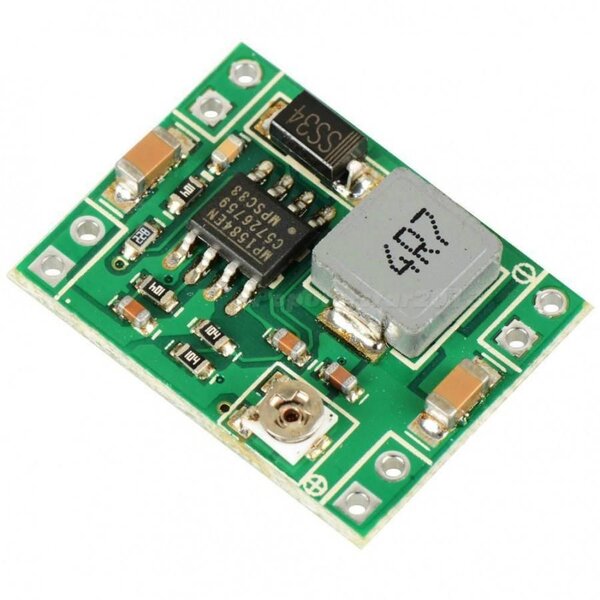

This tiny step down regulator can supply 3v, 5v, 12v, etc to your Raspberry Pi, Flight Controller, Receiver, Camera, VTX, etc. Although rated for 3A, it is not recommended to go above 1.6A without cooling. For cooling it down you can get a heatsink.
Specifications
- Input voltage: 4.5-28V
- Output Voltage: 0.8-20V (adjustable)
- Output current: rated current 3A(MAX)
- Switching Frequency: 1MHz
- Output Ripple:less than 30mV
- Efficiency: 96%(max)
- Operating temperature: Industrial grade (-40 C to +85 C)
- Module Properties: Non-isolated step-down module (buck)
- Size: 22x17x4mm
