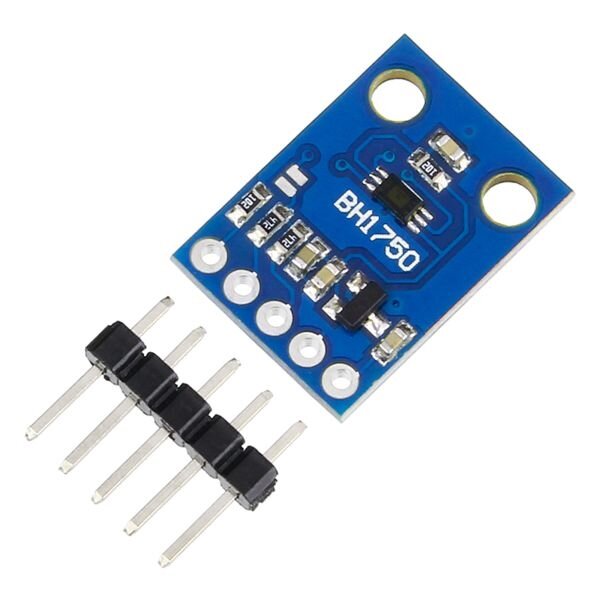

BH1750 Light Intensity Sensor
SKU SER00826 Hersteller Sonstige
26 auf Lager
3 Coins für dieses Produkt!
3,00 €

inkl. 20% USt., zzgl. Versand

Bestellen Sie innerhalb der nächsten
und die Lieferung erfolgt: MI, 24.10.2018 - DO, 25.10.2018
(bei heutigem Zahlungseingang und Lieferung innerhalb Österreich)

Beschreibung

The BH1750 Light Intensity Sensor is a digital ambient light sensor which uses I2C to communicate.

Unlike using a photoresistor and having to convert the analog value, the BH1750 provides you with a digital value in lux (Lx) over a range of 1 - 65535 lx.

The module includes an on-board 3.3V regulator which makes the module compatible with 5V devices such as an Arduino.

With this module you don't need to worry about adding pull-up resistors on the I2C lines since they already have on-board pull-up resistors connected to the 3.3V output of the on-board voltage regulator.

The module's ADDR pin allows you to configure the device for one of two available I2C addresses. The default address is 0x23, but pulling the ADDR pin high will change the device's address to 0x5C. The ADDR pin's maximum voltage is 3.6V. If you don't want to change the default address then you don't need to connect anything to the ADDR pin since the module has an on-board pull-down resistor tying the ADDR pin to ground.

Specifications

Supply Voltage3.3 - 6 V
Supply Currentup to 190 µA
I2C Address
    Default
0x23
    ADDR Pin High
0x5C
Resolution
    High Resolution Mode
1 lx
    Low Resolution Mode
4 lx
Board Dimensions:
    Length
18.6mm (0.732")
    Width
14.5mm (0.571")
