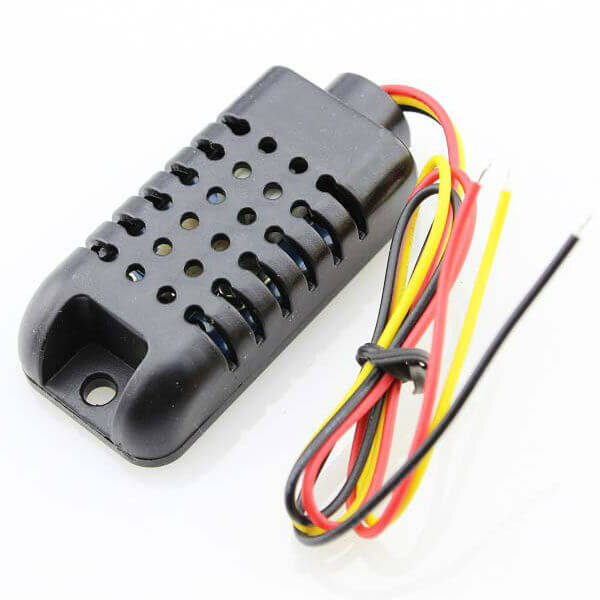

AM2301 - DHT21 Temperature-Humidity Sensor

This temperature amp; Humidity sensor is a wired version of the DHT21, in a large plastic body. It is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.

12,00 €
inkl. 20% USt. , zzgl. Versand
Nicht auf Lager
Beschreibung

This temperature amp; Humidity sensor is a wired version of the DHT21, in a large plastic body. It is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.

Simply connect the red 3-5V power, the yellow wire to your data input pin and the black wire to ground. Although it uses a single-wire to send data it is not Dallas One Wire compatible! If you want multiple sensors, each one must have its own data pin!

Specification

  • Dimension: 59 * 27 * 13mm
  • 3.5-5.5V Input
  • 1-1.5mA measuring current
  • Humidity from 0-100% RH
  • -40 - 80 degrees C temperature range
  • +-3% RH accuracy
  • +-0.5 degrees C
  • Model: AM2301
  • Wire length: 25cm

Hardware

Red+5V
BlackGND
YellowDigital I/O

Documents

Bewertungen (1)

4/5
(1)

5 Sterne
3 Sterne
2 Sterne
1 Stern

Teilen Sie anderen Kunden Ihre Erfahrungen mit!

Bin zufrieden
4 von 5

Die Genauigkeit ist ausreichend - wenn der Sensor genug Zeit hat sich anzupassen

Andreas L., 06.11.2015
