1.44inch LCD display HAT for Raspberry Pi
SKU WS13891 Hersteller Waveshare
16 auf Lager
14,00 €

inkl. 20% USt., zzgl. Versand

Beschreibung

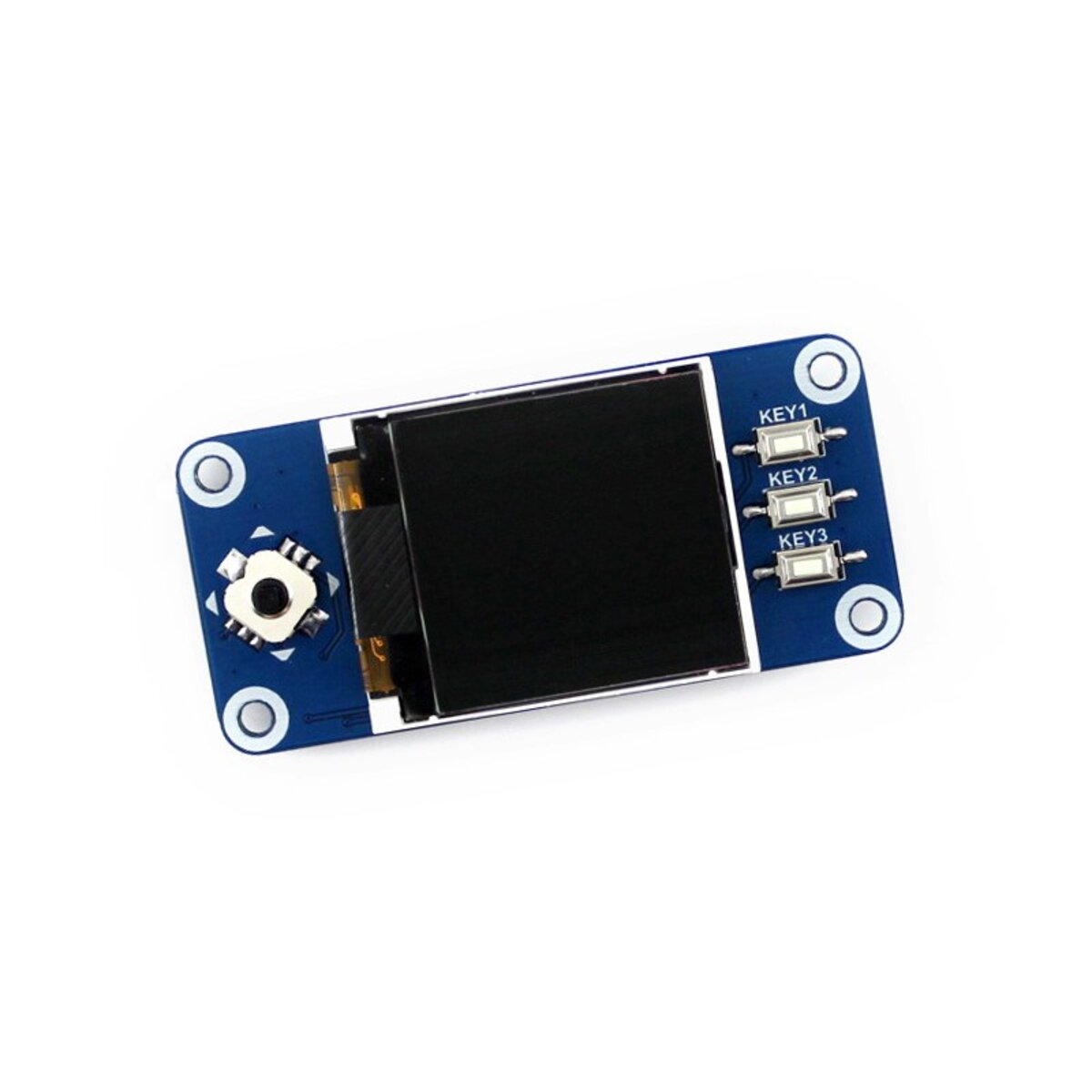

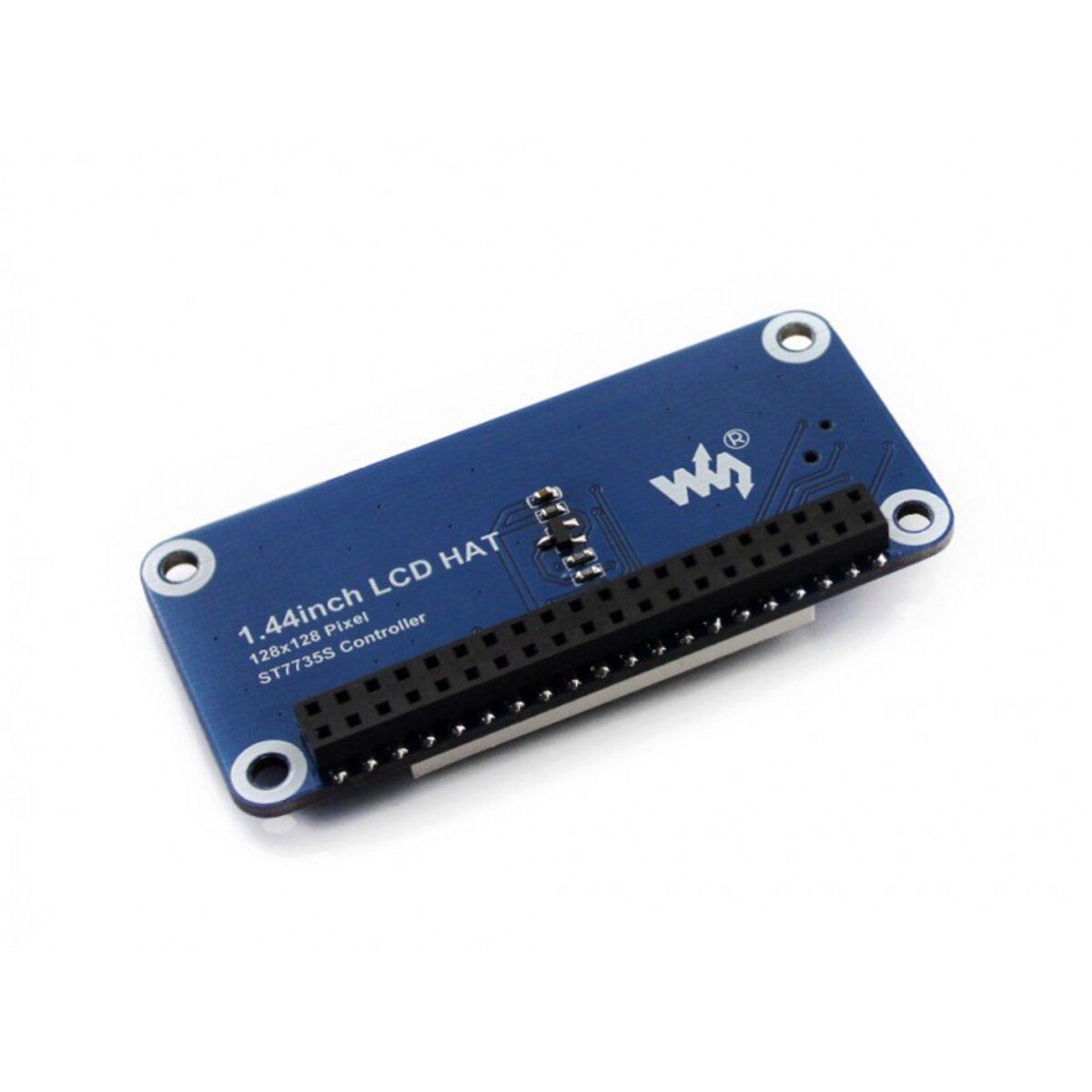

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Features

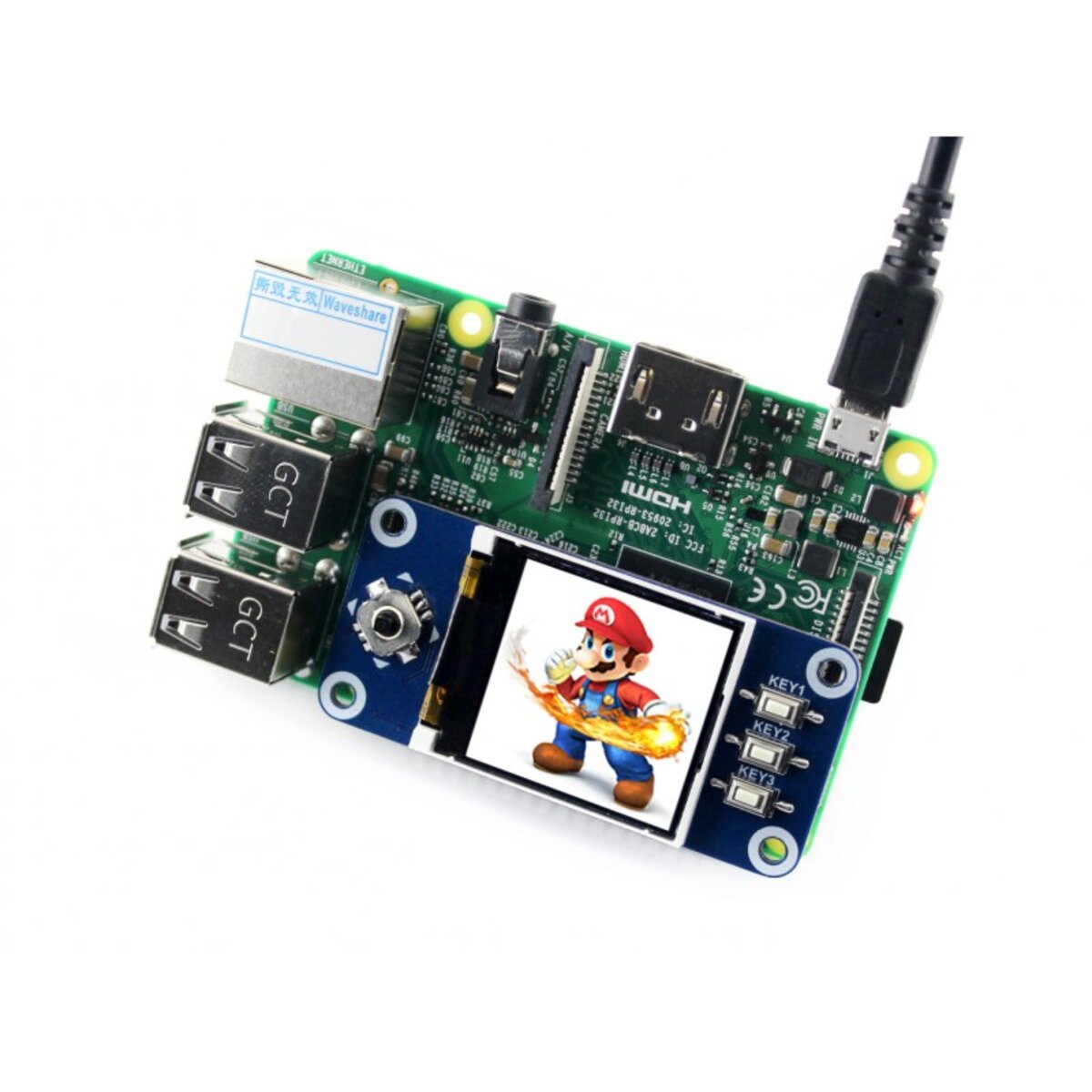

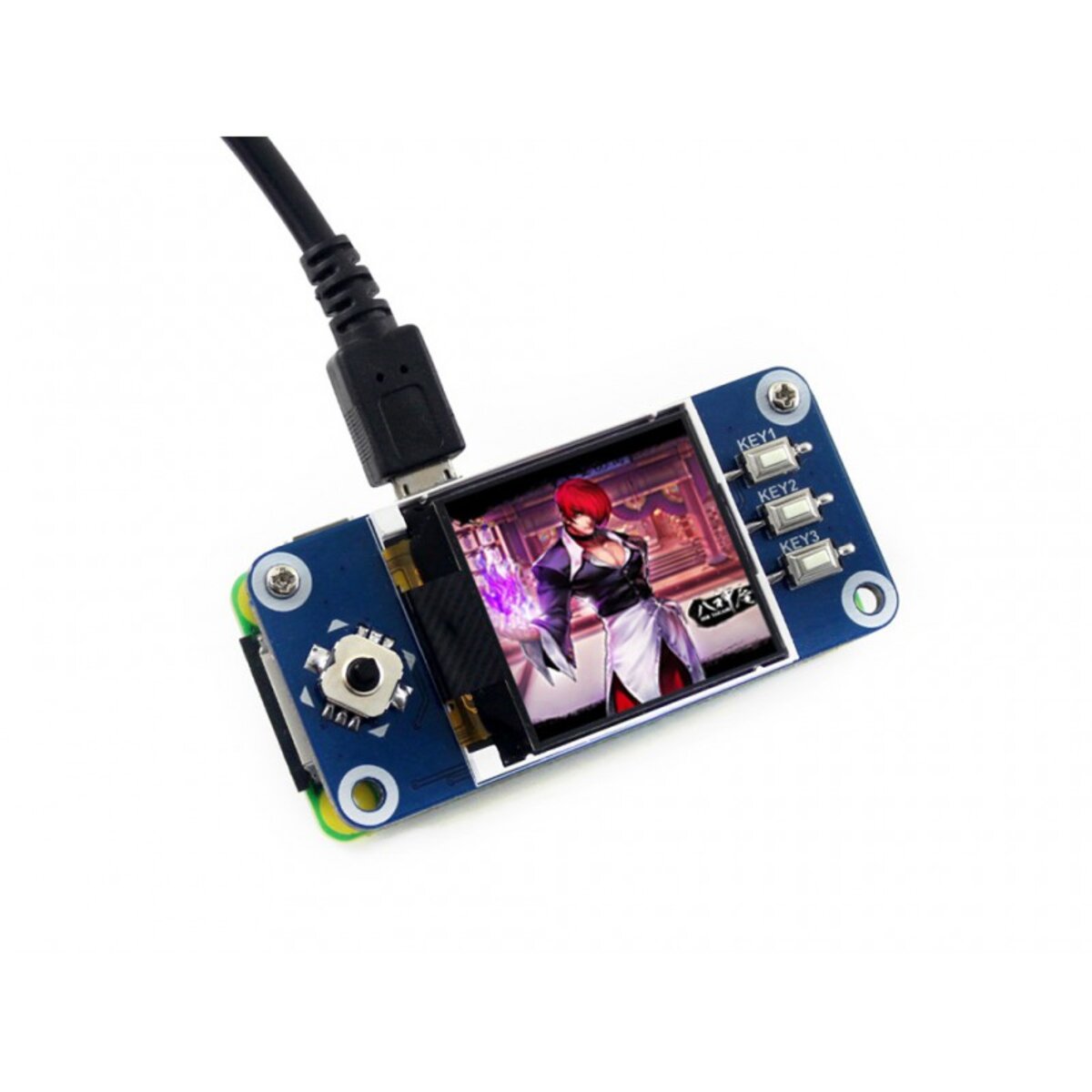

  • Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
  • 1x joystick (5-position), 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

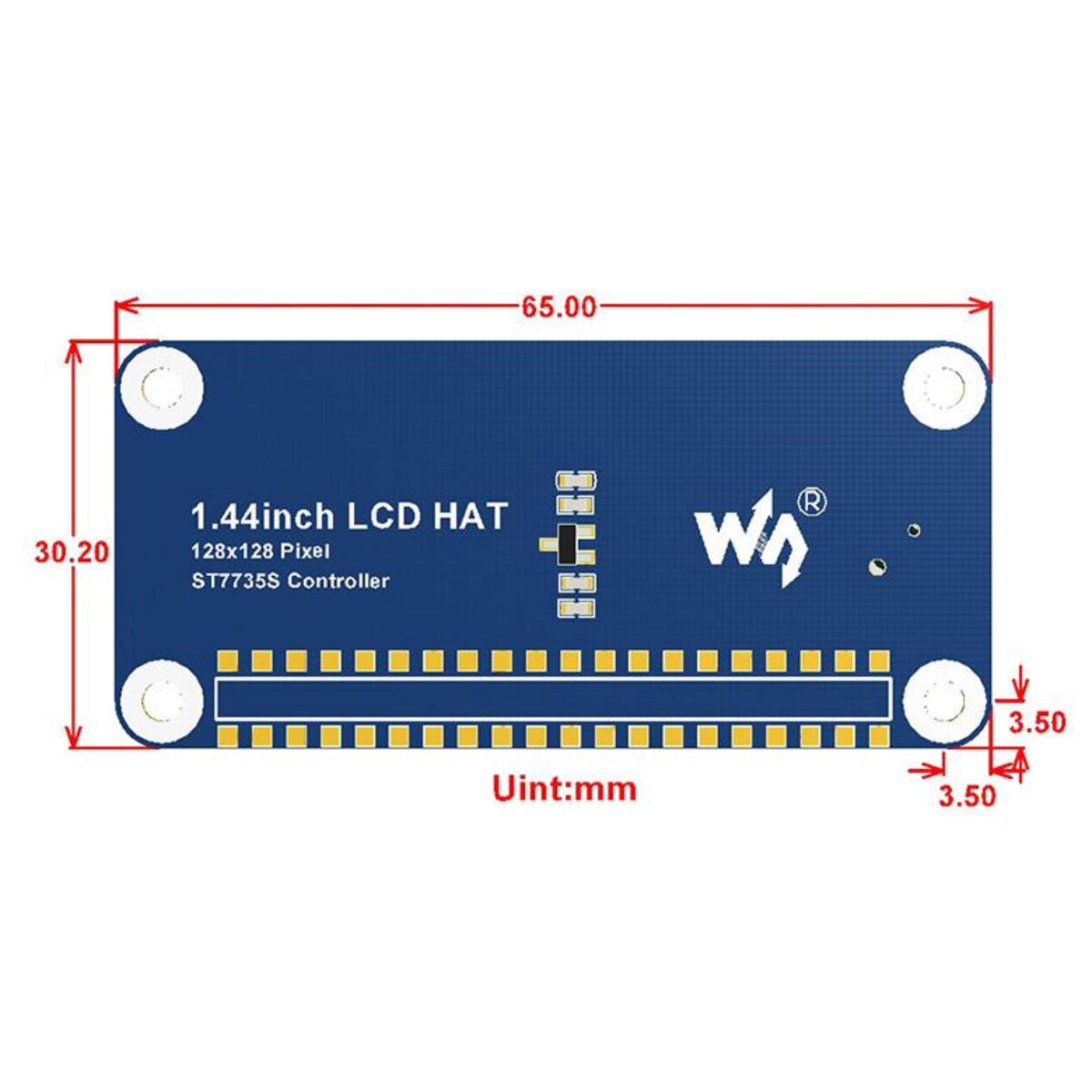

Specifications

  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x128
  • Backlight: LED
  • Operating voltage: 3.3V

Interface

SYMBOLRaspberry Pi PIN (BCM)DESCRIPTION
KEY1P21Button 1/GPIO
KEY2P20Button 2/GPIO
KEY3P16Button 3/GPIO
Joystick UpP6Joystick Up
Joystick DownP19Joystick Down
Joystick LeftP5Joystick Left
Joystick RightP26Joystick Right
Joystick PressP13Joystick Press
SCLKP11/SCLKSPI clock input
MOSIP10/MOSISPI data input
DCP25Data/Command selection (high for data, low for command)
CSP8/CE0Chip selection, low active
RSTP27Reset, low active
BLP24Backlight

Development Resources

Wiki : www.waveshare.com/wiki/1.44inch_LCD_HAT
