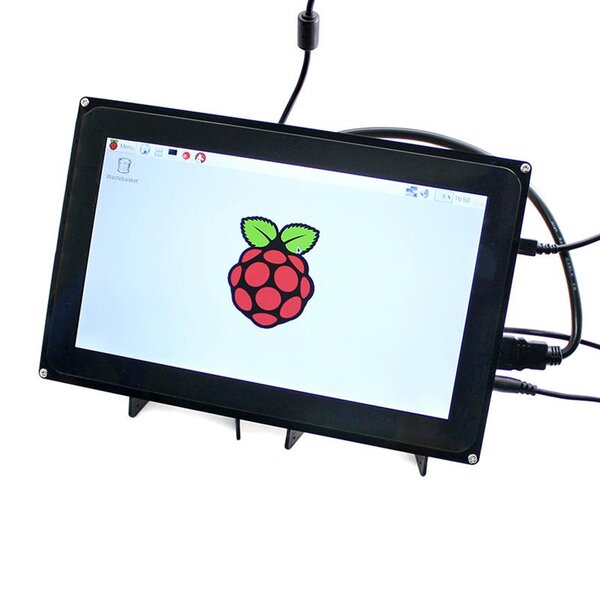

The 10.1" HDMI LCD with Case for Rasberry Pi is ideal for your projects if you need a bigger screen size. It has a high resolution of 1024x600 and capacitive touch control. The best thing is that you do not need a driver for this screen!
The LCD and Control Board
- 1024×600 high resolution
- Capacitive touch control
- When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
- Supports BB Black, comes with Angstrom image
- Multi video input interfaces: HDMI, VGA, and AV(CVBS)
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- Supports 100-level backlight adjustment
- Firmware is upgradable to support more new features (continually updated)
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: Mini HDMI to HDMI converter, USB-type-A-receptacle-to-Micro-B-plug-cable
The Case
- Material : high quality clear Acrylic
- Comes with bottom holder, 45° tilt angle
- Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, and BB Black
Development Resources
Wiki :www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)
