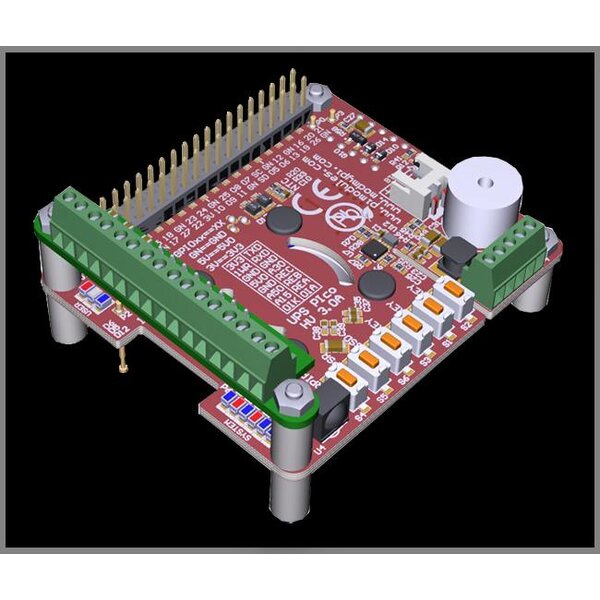

UPS PIco HV3.0B HAT Stack Plus with Battery 450

Name: UPS PIco HV3.0B HAT Stack Plus with Battery 450
Brand: PiModules
SKU: SER00837
Price: 50.00 EUR
Availability: OutOfStock

SKU: SER00837 Kategorie: HATs Hersteller: PiModules

50,00 €

inkl. 20% USt. , zzgl.

Nicht auf Lager

Ordered Item contains:

UPS PIco HV3.0B HAT Stack Plus PCB with all described below long list of features
LiPO Battery 450 mAh 15C
Not Soldered 2x8 Pins headers for all specified below I/Os
Not Soldered High Voltage and Relay Terminal Blocks
Not Soldered Gold Plated Reset Pin
Not Soldered Electromagnetic Sounder
Not Soldered ON/OFF slide switch
Not Soldered bi-Stable Relay with apropriate TB
Mounting Spacers, screws, nuts need to mount on the Raspberry Pi® microcomputer

Ordered Item does not contain and should be ordered separately if needed for specific application:

Infrared Receiver
High Capacity Batteries (1500 mAh, 4000 mAh, 8000 mAh)
PIco single LP/LF 18650 Battery Holder
PIco double Li-Ion 18650 Battery Holder
UPS PIco HV3.0 Terminals Blocks PCB
PIco FAN Kit 3.0

System Overview

The UPS PIco HV3.0B HAT Stack Plus with Battery 450 is an advanced Intelligent Mobile Power Bank and Uninterruptible Power Supply for the Raspberry Pi® A+/B+/2/3 and ZERO/W, that adds a wealth of innovative powering/backup functionality and development features to the innovative microcomputer! The UPS PIco HV3.0B HAT Stack Plus with Battery 450will automatically shut-down your Raspberry Pi® if there is a power failure, supply mobile applications from battery source, and can be set to automatically monitor and reboot your Raspberry Pi® once power has been restored!

If used as Mobile Power Bank it is equipped also with an Intelligent Externally Accessed (with Files Safe Shutdown functionality) Power Slide Switch that allows to safety System Switch ON/OFF whenever you like, without worrying about files corruption as it is always properly shutdown the system before battery will be disconnected (keep battery connected until system shutdown)!

The UPS PIco HV3.0B HAT Stack Plus with Battery 450 features a 5V 3A total current output on battery powering, designed for use on the latest Raspberry Pi® 3 as also former Raspberry Pi® modules!

UPS PIco HV3.0B HAT Stack Plus with Battery 450offers now 3 User Programmable Keys, 3 separate User programable LEDs with different colors, support for multiple and different chemistry of a high capacity batteries, bi-stable relay (Zero Power) configured as DPDTor SPDT, as also 3 x A/D 12-bit converters with pre-adjustable readings to 5.2V. As also 10V, 20V and 30V voltage conversion (when used with Terminal Blocks PCB or separate external resistors). Now, with number of embedded sensors (inbound current, outbound current, temperature, voltages), true 5V 1-wire interface, optional high voltage RS232 interface and many, many additional features!!

The UPS PIco HV3.0B HAT Stack Plus is standard equipped with a 450mAh 15C LiPO battery (able to supply up to 6.5A)specially designed to enable safe shutdown when cable power cuts. Additionally, this can be easily upgraded to the extended 1500mAh, 4000mAh, 8000mAh or even 12000mAh (on Special Order) capacities, which enables prolonged use of a Raspberry Pi for more than 24 hours without a power supply connected!

The UPS PIco HV3.0B HAT Stack Plus with Battery 450 design support now batteries with different chemistry like: LiPO, Li-Ionas also LiFePO4. Especially the LiFePO4batteries are addressed to applications where temperatures environment is more restricted as can be used for supplying from -10 degrees up to +60 degrees. In addition, the LiFePO4have a unique extremely long life of charging/discharging that can achieve up to 2000 cycles or 10 years life time!!

Now, with new add-on board (PIco LP/LF Li-Ion 18650 Battery Holder) you can use all Li-Ion 18650 batteries from electronic cigarettes wide available on the local markets approaching total capacity of 7200mAh, as also 18650 LiPO and LiPo4Fe (called also 123).

With additional External Supply Powering Input; that has implemented Dynamic Power Tracking (based on Voltage Proportional Charge Control – especially designed for Solar Cells); automatically adjust battery charging current according to power availability from 100mA – 800 mAh, in order to use all available energy from the Solar Panel in case of use. This feature has been especially designed to support Solar Panel Powering Raspberry Pi® Systems, as it is adjusting the charging battery current to available Sunning conditions, which is varring. The External Supply Powering Inputis able to accept power from 7 V DCup to 28 V DC!!Thus, make it ideal for Cars, Trucks, Buses and any industrial applications where voltage is usually higher than 24V DC. The External Supply Powering Inputis equipped with Over Current protection, Over Voltage protection, ESD protection as also with Zero Voltage Drop Inverse Polarity Protectionprotecting Raspberry Pi® System from improper usage, but also offers, due to zero voltage drop, usage of most of available energy from the Solar Panel in case of use.

The UPS PIco HV3.0B HAT Stack Plus with Battery 450is powered and the Battery Pack intelligently charged via the GPIO pins on the Raspberry Pi®, therefore no additional cabling or power supply is required (if used Raspberry Pi® PSU 5V supply). Due to that fact UPS PIco HV3.0B HAT Stack Plus with Battery 450requires no external cable powering and fits within the footprint of the Raspberry Pi®, it is compatible with most cases. If powered via External Power Input (7V-28VDC) the there are cases available to hold your designed system.

Also, in case the UPS PIco HV3.0B HAT Stack Plus with Battery 450 is powered from the Extended Power Input, it allows to charge the battery even if Raspberry Pi® is not powered. Thus, functionality in combination with Events Scheduler make the system always full of energy when needed to be running.

Professional developers often need to protect their application. To support them UPS PIco HV3.0B HAT Stack Plus with Battery 450offers the XTEAdual path encryption engine that protect the developed software with the secure code.

The new PCB is designed with 2 oz copper and 4 layers,especially for high current powering systems offering Multilayer Copper Thermal Pipes for increased System Thermal Response and better passive cooling!!

The PIco HV3.0B HAT Plus 450 can also be equipped with an optional Infra-Red Receiverwhich is routed directly to GPIO18.

The embedded Electromagnetic Programmable Soundercan be used as a simple buzzerbut also as music playerdue to implemented sound generator and dedicated programmer interface.

The IoTdevelopers will find useful the 3 independent ESD protected 12 bits buffered A/D convertersas also number of internal sensors and sensor interfaces that can be used for system monitoring such as Battery Voltage, Raspberry Pi Voltage, Inbound/Outbound Current measure, System Temperature and true 5V 1-wire interface.

The integrated Hardware RTCCenables a new extremely usefully feature – the Events Triggered RTCC Based System Actions Scheduler. The Events Triggered RTCC Based System Actions Schedulerallows to timely start up, or shutdown the Raspberry Pi®on various internal or external events that include, data available on RS232, A/D, RTCC, and temperature, or just on requested Time Stamp.

Finally, the UPS PIco HV3.0B HAT Stack Plus with Battery 450features an implemented Automatic Temperature Control PWM FAN controller, and can be equipped with a micro fan kit, which enables the use of the Raspberry Pi® in extreme conditions including very high temperature environments. The FAN speed can be manually/automatically adjusted according to system temperature conditions linear from 0 % (FAN is OFF) up to 100% by increasing and decreasing rotation speed. Thus, guarantees the possible lowest level of noise and always cool Raspberry Pi® 3

Designed and Manufactured in Europe

3D PDF (Please download first and then open with Adobe Acrobat)

Revised Prospectus and Technical Specifications (Can be opened directly with Web Browser and Adobe Acrobat)
