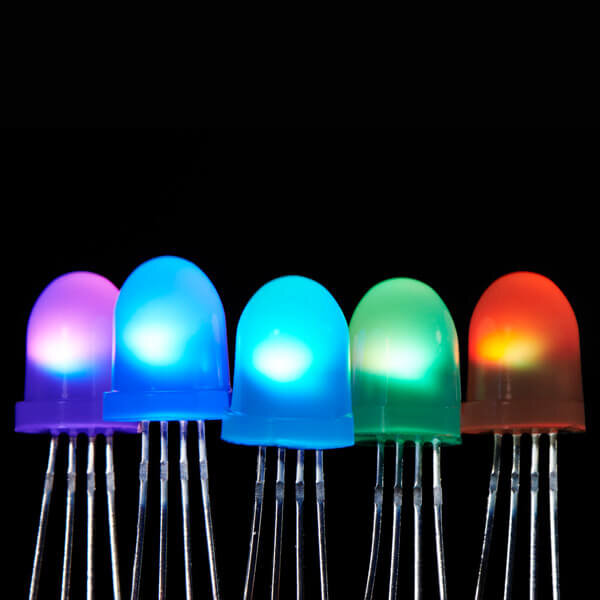

The pixel points inside the P9823-F8 8mm NeoPixel compatible LED contains a smart digital interface data latch signal shaping circuit, but also contains a high precision internal oscillator, which effectively ensures the color of the pixel point of light.
Note: This LED's are full compatible with WS2812 Library, so you can use them with this LED's
Product features
- The LED input voltage 4.5V ~ 6.5V, built-in LDO;
- The on-chip voltage regulator tube, power supply end series resistance to IC VDD feet, without external regulator
- The gray level adjusting circuit (256 brightness adjustable)
- Dual built-in RC oscillator, and according to the data signal line for clock synchronization, after receiving the data of the unit can automatically the follow-up data were shaping forwarding
- The built-in power on reset circuit
- The PWM control terminal can achieve the 256 level adjustment, scanning frequency of not less than 400Hz/s
- The cascade interface serial interface, via a signal line to complete the receiving and decoding of data
- When the refresh rate of 30 frames per second, the number of cascade low speed mode is not less than 512 points, the high-speed mode is not less than 1024 points
- The data transmission speed of up to 800Kbps
| IC Type | P9823-F8 |
| Model no. | LC-P9823-F8 |
| Input voltage | DC 5V |
| Powe | 0.3W |
| Grayscale | 25 degree, R,G,B each channel, |
| Emitting color | full colo RG |
| Lifespan | = 50000Hrs |
| Material | milkl PVC cover or costomize as request |
| Working Temperature | -40¡C~70¡C |
| Beam angle | 110¡ |
| Certificate | CE & RoHS |
| Control system | DMX console, computer controller or SD card controller |
