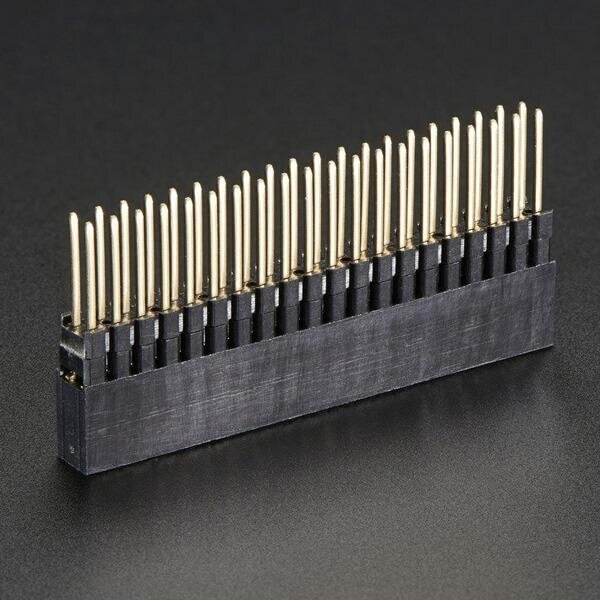

Stack multiple plates, breakouts etc onto your Raspberry Pi Model B+ with this custom-made extra-tall and extra-long 2x20 female header. The female header part has extra spaces to make it 23mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 10mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8.5mm remaining, plenty to plug into.
Technical Details
- Dimensions: 5mm x 51mm x 23mm / 0.2" x 2" x 0.9"
- Pin Length: 10mm
- Pin Spacing: 2.5mm / 0.1"
- Pin Thickness: 0.6mm / 0.02"
- Weight: 6.5g
