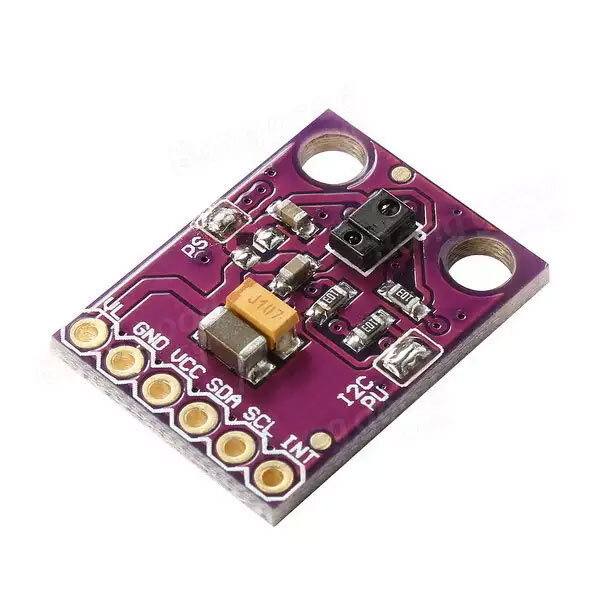

The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly. The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light condition or behind a dark faceplate.
Features
ALS, IR LED and Proximity Detector in an Optical Module
-
Ambient Light Sensing (ALS)
- Approximates Human Eye Response
- Programmable Interrupt Function with Upper and Lower Threshold
- Up to 16-Bit Resolution
- High Sensitivity Operates Behind Darkened Glass
- Low Lux Performance at 0.01 lux
-
Proximity Detection
- Fully Calibrated to 100 mm Detection
- Integrated IR LED and Synchronous LED Driver
- Eliminates "Factory Calibration" of Prox
-
Programmable Wait Timer
- Wait'state Power
- 90 µA Typical
- Programmable from 2.7 ms to gt; 8 sec
-
I2C Interface Compatible
- Up to 400 kHz (I2C Fast-Mode)
- Dedicated Interrupt Pin
- Sleep Mode Power - 2.2 µA Typical
- Small Package L3.94 x W2.36 x H1.35 mm
