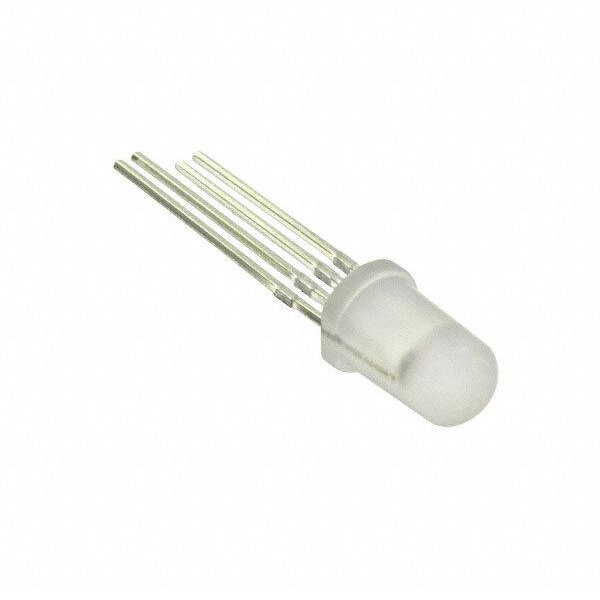

APA-106 is an RGB LED with built in controller IC (a.k.a. addressable LED.)
APA-106 is an RGB LED with built in controller IC (a.k.a. addressable LED.) It uses same protocol as the popular WS2811 or WS2812 LEDs, so code can be reused. Comes in one size, 10mm. Perfect for the breadboard or any through hole project.
Features:
- Available i 10mm package
- 4.5V-6V power supply
- 256 dimming level for each color
- 800kHz internal frequency
- Single wire control
- No external components required
- T0H = 0.35us/+-150ns, T1H = 1.36us, T0L = 1.36us. T1L = 0.35us, RES = 50us
