Raspberry Pi an All-in-One Expansion Board with a lot of Features!
Pioneer600 Features
- Supports Raspberry Pi A+/B+/2B/3B/3B+
- <Standard I/O> dual LED, joystick, buzzer, the basic components
- <USB TO UART> CP2102, control the Pi through serial terminal
- <Display> 0.96inch OLED, big world in the little screen
- <RTC> DS3231, high precision, backup battery holder is also available
- <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
- <GPIO Expansion> PCF8574, more GPIO, more possibility
- <IR Control> LFN0038K, Raspberry Pi remote control comes true
- <Pressure Sensor> BMP280, measuring air pressure and temperature
- <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
- <Sensor Interface> for connecting various sensors

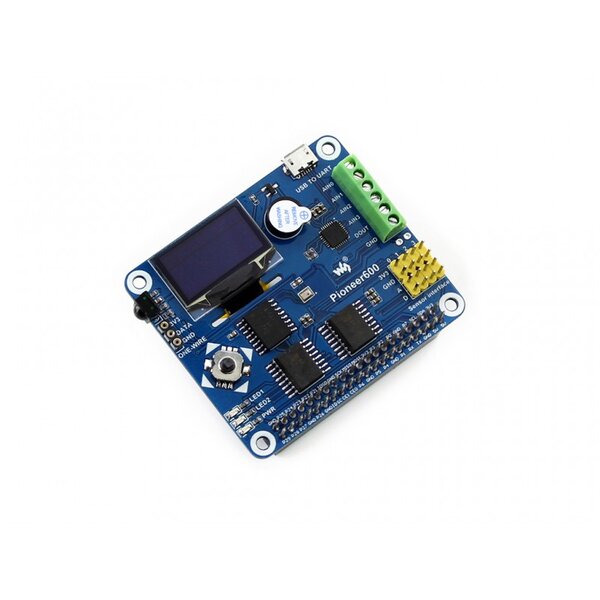

What's on the Pioneer600
- Raspberry Pi GPIO interface : for connecting Raspberry Pi
- USB TO UART : control the Pi through serial terminal
- AD/DA IO interface : screw terminal
- 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
- Sensor interface : for connecting various sensors
- 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
- Buzzer
- CP2102 : USB TO UART converter
- PCF8591 : 8-bit AD/DA converter, I2C interface
- BMP280 : pressure sensor, I2C interface
- PCF8574 : I/O expansion chip, I2C interface
- DS3231 : high precision RTC chip, I2C interface
- Power indicator
- User LED
- Joystick
- LFN0038K IR receiver
Examples
| Peripheral | Interface | Python | WiringPi | BCM2835 C Library | SysFs |
|---|---|---|---|---|---|
| LED | I/O | v | v | v | v |
| KEY | I/O | v | v | v | |
| IRM | I/O | v | v | v | |
| UART | UART | v | v | ||
| DS18B20 | ONE-WIRE | v | v | ||
| PCF8574 | I2C | v | v | v | v |
| PCF8591 | I2C | v | v | v | |
| DS3231 | I2C | v | v | v | |
| BMP280 | I2C | v | v | v | |
| OLED | SPI | v | v | v |
Development Resources
- User manual
- Schematic
- Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
- Raspberry Pi tutorials
- Raspbian (configured system image)
