Beschreibung

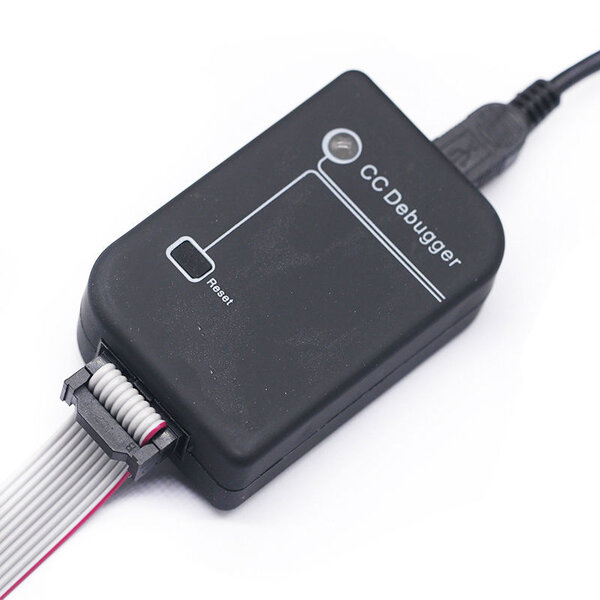

The CC Debugger is a programmer/debug module for TI 8051-based Low-Power RF System-on-Chips. CC Debugger can be used with PC software tools such as the SmartRF Flash Programmer and SmartRF Studio, or IAR Embedded Workbench for 8051 from IAR Systems. It can also be used for controlling selected transceiver devices via SmartRF Studio. Audio Streaming devices can be configured and controlled via PurePath Wireless Configurator and PurePath Wireless Commander.
Contents in the box:
- CC Debugger
- Mini USB cable
- 10-pin flat cable with 2x5 2.54mm connector
- 10-pin flat cable with 2x5 1.27mm connector
- Converter board 2.54mm-1.27mm connector
CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments:
- CC1110, CC1111
- CC2430, CC2431
- CC2510, CC2511
- CC2530, CC2531, CC2533
- CC2540, CC2541
- CC2543, CC2544, CC2545
It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio:
- CC1120, CC1121, CC1125, CC1175
- CC1100, CC1101, CC110L, CC113L, CC115L
- CC2500, CC2520
It can also be used to program the PurePath Wireless devices:
- CC8520, CC8521
- CC8530, CC8531
